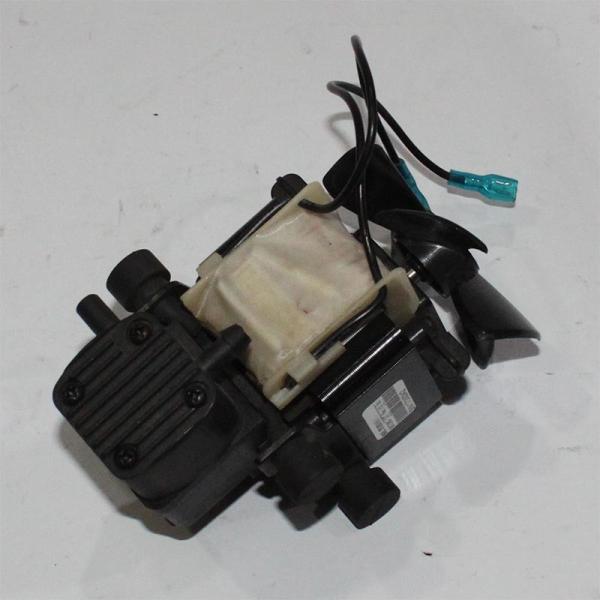

Nebulizer motor , GSE ZWS180A-6/0.8-JS033 , AC 220V/50Hz , 68W
Product Descriptions:
GSE medical nebulizer motor ZWS180A-6/0.8-JS033, is a high efficiency and low energy consumption compressor - The wobble piston oil-less air compressor is designed to offer higher efficiency and consume less energy than traditional air compressors. This is due to the floating piston design, which eliminates the need to overcome the friction in the cylinder walls. This reduces the amount of energy required to move the piston and results in more efficient operation.
Reliable, low-vibration operation - The wobble piston oil-less air compressor is designed for reliable and low-vibration operation. This is because the floating piston design eliminates the need for oil-based lubrication, which can cause wear and tear on the cylinder walls and lead to vibration. Additionally, the air cushion surrounding the piston helps to reduce the vibration caused by the piston movement.
No need for an external lubrication system - The wobble piston oil-less air compressor does not require an external lubrication system like traditional air compressors. This is because the piston is designed to float on a cushion of air, eliminating the need for oil to lubricate the cylinder walls. Additionally, the air cushion also helps to reduce wear on the piston and cylinder walls, ensuring a longer service life and more reliable performance.
Specifications:
| Model | ZWS180A-6/0.8-JS033 |
| Voltage input(V) | 220V/50Hz |
| Power(W) | ≤68W@110KPa/220V/50Hz |
| Max pressure(Pa) | ≥206KPa |
| Rated flow(LPM) | ≥6.0L/min@80kPa |
| Ambient(°C) | 10-40°C |
| Insulation class | B |
| Thermal protector | KW-135℃ |
| Net weight(Kg) | 1.1Kg |
| Restart pressure(Kpa) | 0kPa |
Features:
1. Single piston
2. Positive pressure
3. High performance cup seals
4. High quality bearings
Advantages:
1.Oil less operation
2.Long life
3.Free maintainance
4.Minitype
